T3W3-0.5W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 32 nodes

◆ Frequency 1350~1440MHz / 1420~1460MHz，1MHz step adjustable；

◆ Output power 0.5W：2x0.25W,1dBm step adjustable

◆ Bandwidth 1.25 / 2 / 2.5 / 5 / 8 / 10 / 20 / 40 MHz

◆ Receive sensitivity -95dBm@5MHz

◆ Peak rate 60+Mbps@20MHz

◆ Range 5+km（LOS）

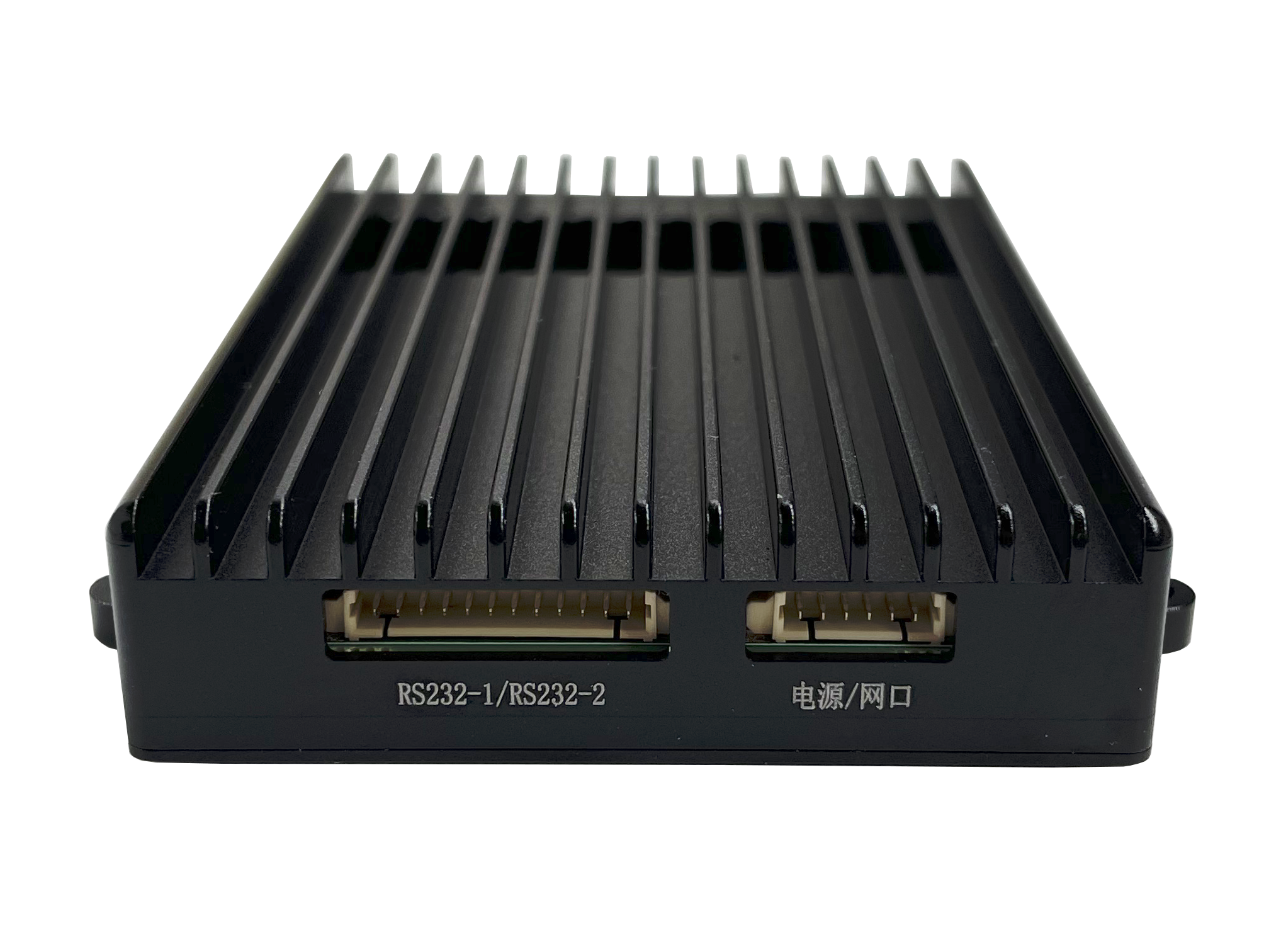

◆ Interface LANx1、RS232x2

◆ Secure encryption AES128、AES256

◆ Power consumption 3~8W

◆ Latency about 2ms

◆ Working temperature -40~+70℃

◆ Battery charge 9~15V

◆ Dimensions 78x56x15mm

◆ Bare weight about 80g

Note For detailed parameters, please contact us to obtain the product specification manual
