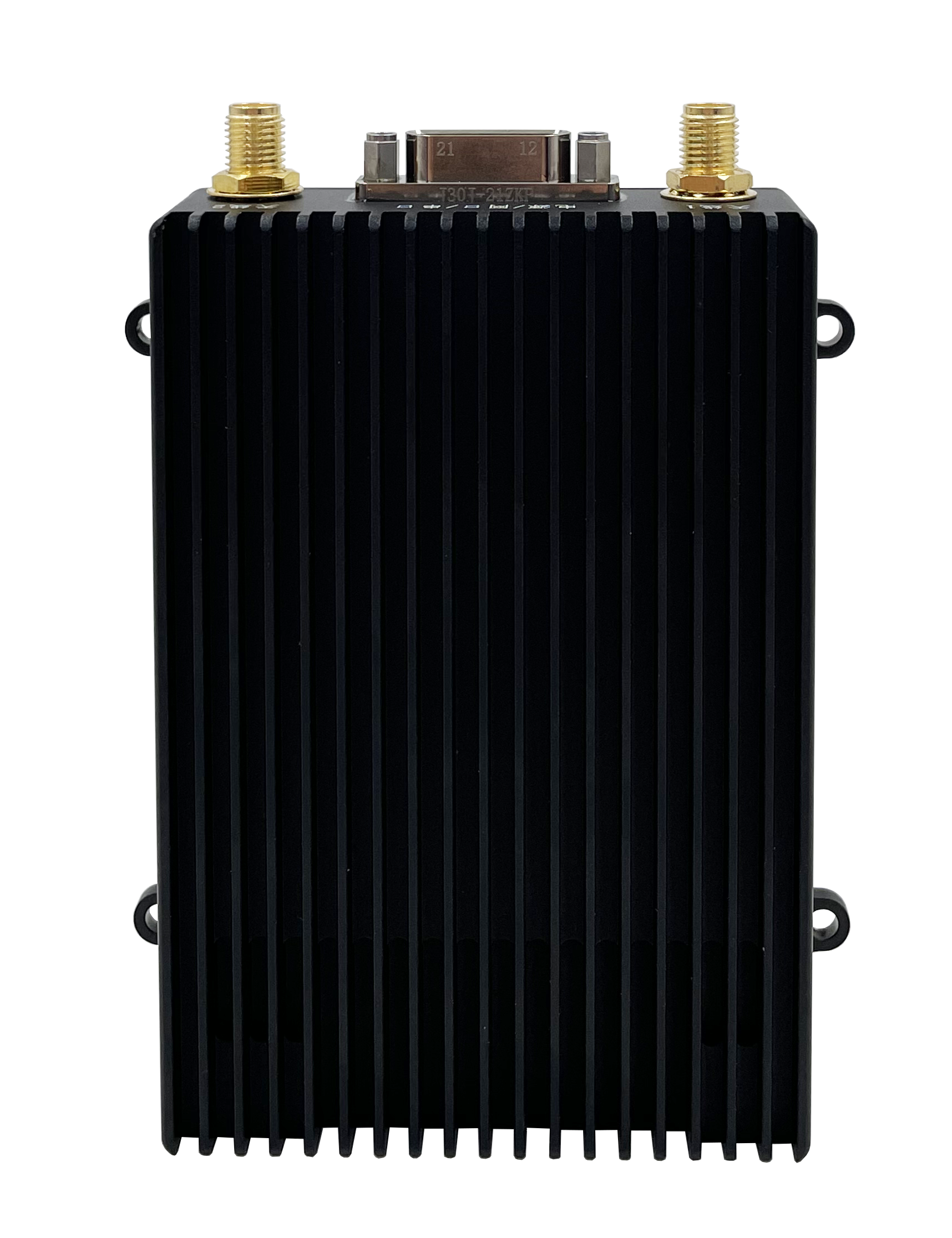

T3S3-3W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 1300~1500MHz，1MHz step adjustable；

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 3W：2x1.5W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 50+Mbps@20MHz

◆ Range 70+km（LOS）

◆ Interface 100M LANx1、RS232x2、RS422x1

◆ Satellite positioning GPS/BD * (* on-demand)

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 5~18W

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Battery charge 9~36V

◆ Dimensions 116x72x24mm

◆ Bare weight about 205g

Note For detailed parameters, please contact us to obtain the product specification manual
