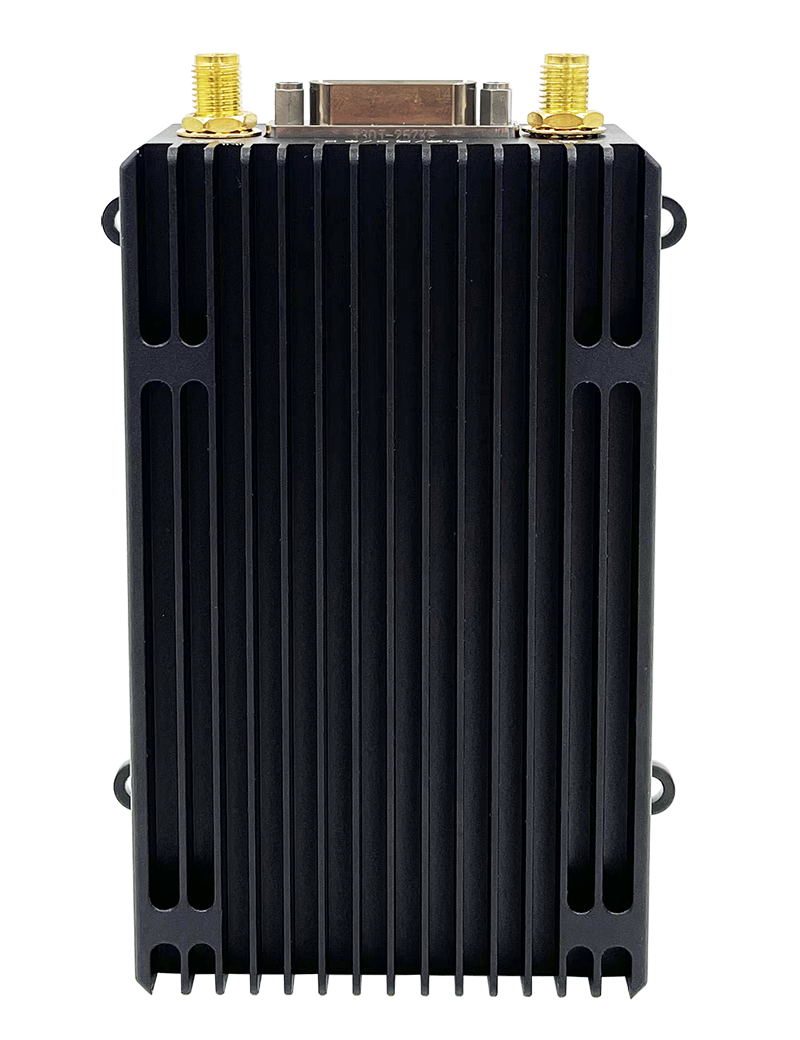

T3S3-4W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 560~680MHz / 1300~1530MHz，1MHz step adjustable；（70~6000MHz customizable）

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 4W：2x2W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 220+Mbps@40MHz

◆ Range 80+km（LOS）

◆ Interface 100M LANx2+RS232x2+TTLx1(-1)；100M LANx2+RS232x3(-2)；

◆ Satellite positioning GPS/BD * (* on-demand)

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 6~20W

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Battery charge 9~28V

◆ Dimensions 100x60x30mm

◆ Bare weight about 235g

Note For detailed parameters, please contact us to obtain the product specification manual
