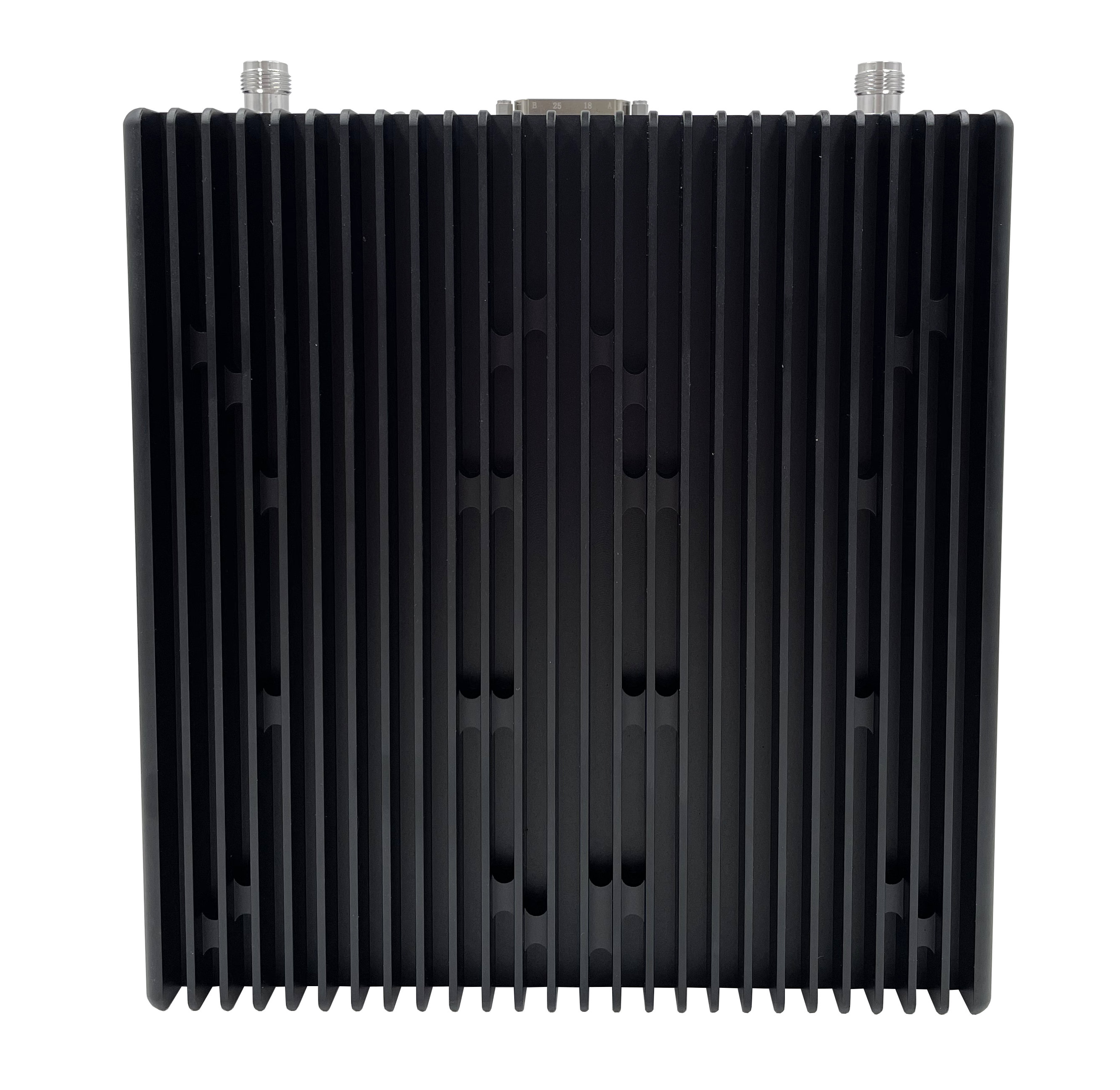

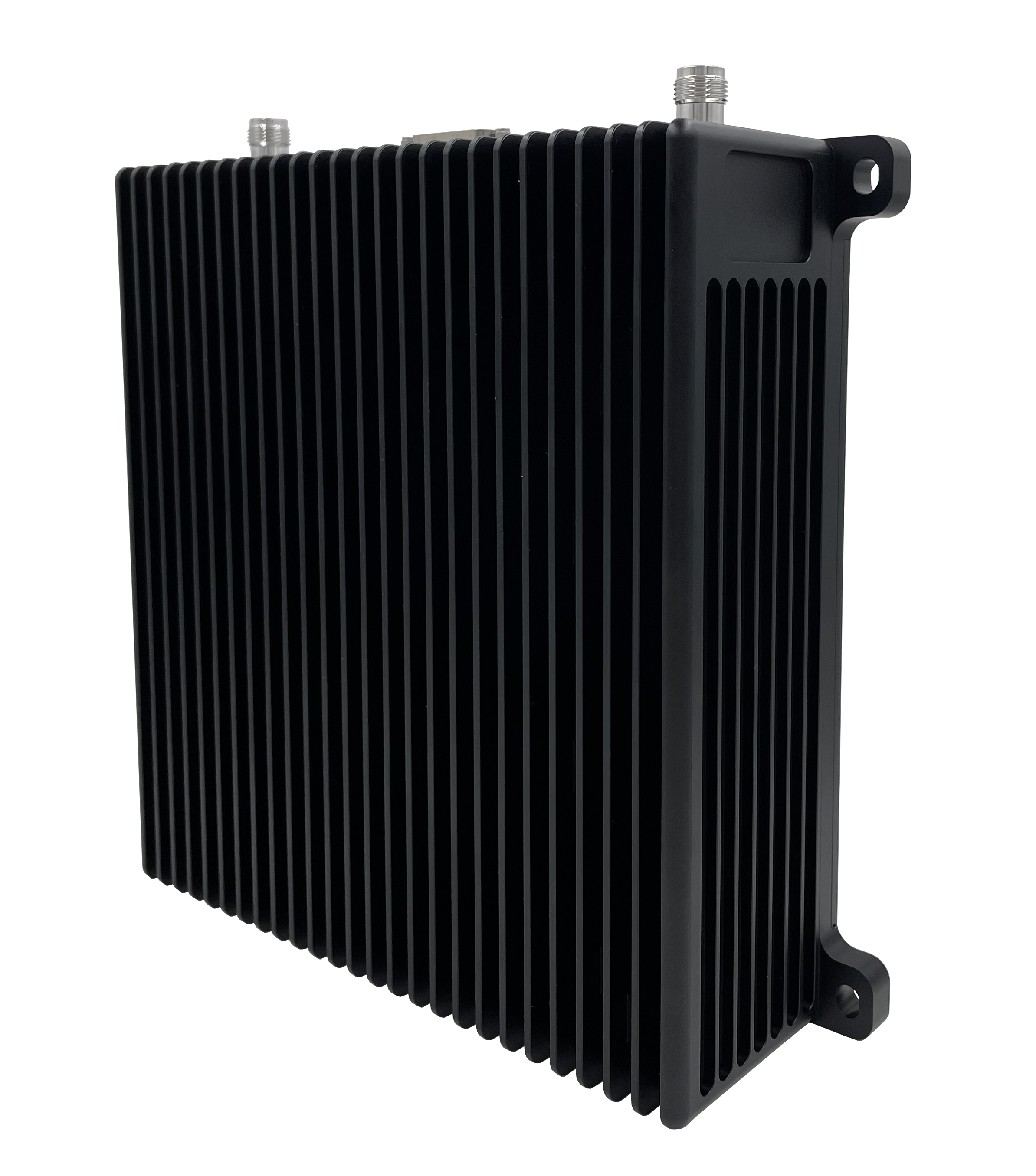

T3S3-40W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 560~680MHz/1300~1530MHz/4200~4400MHz/4400~5000MHz

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 40W：2x20W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 220+Mbps@40MHz

◆ Range 300+km (U, L-band)/200+km (C-band)（LOS）

◆ Interface LANx2、UARTx3（TTL、RS232、RS422 customizable）

◆ Satellite positioning GPS/BD * (* on-demand)

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 20~200W

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Battery charge DC30~48V

◆ Dimensions 190x180x60mm

◆ Bare weight about 2kg

Note For detailed parameters, please contact us to obtain the product specification manual
