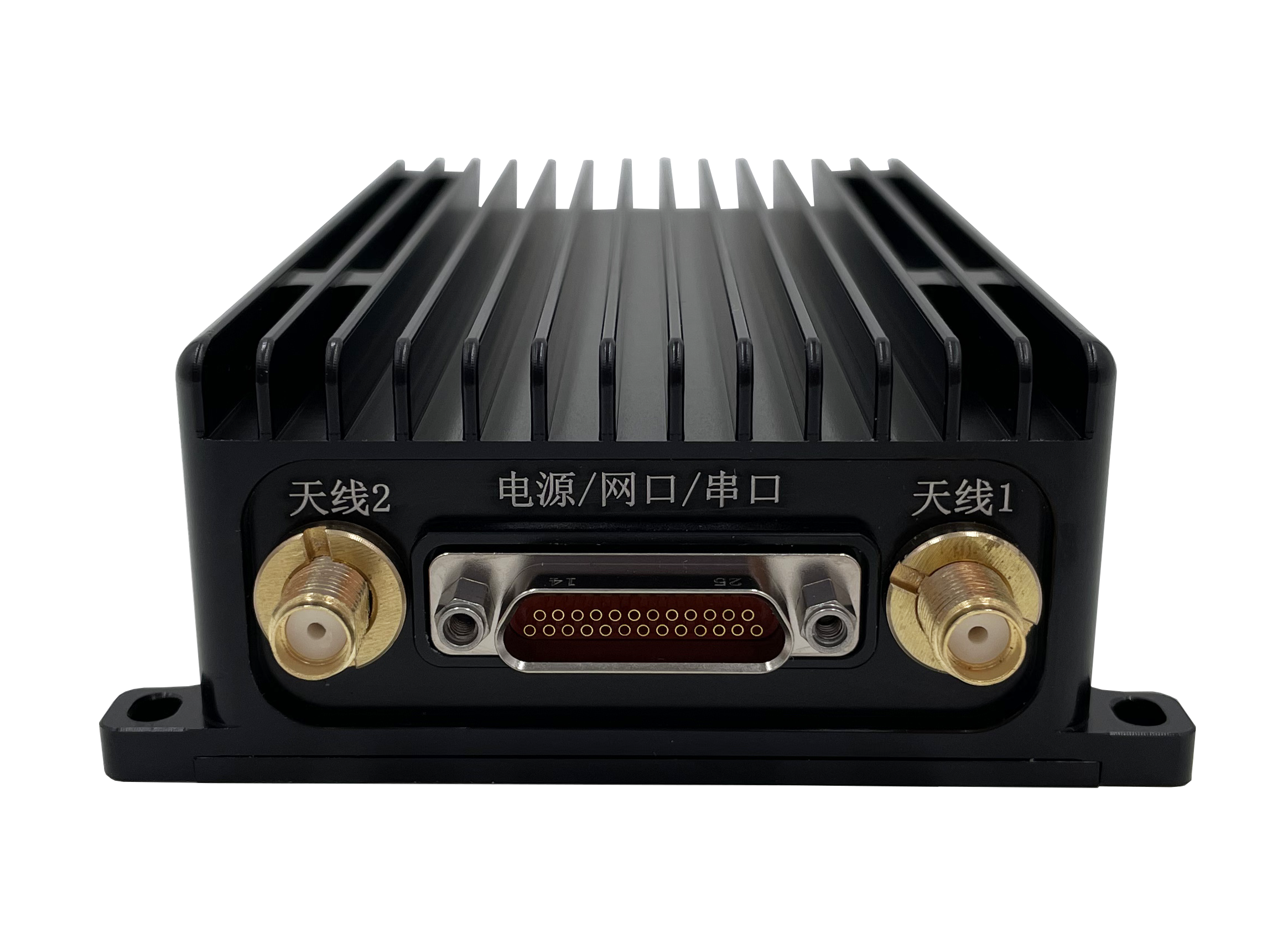

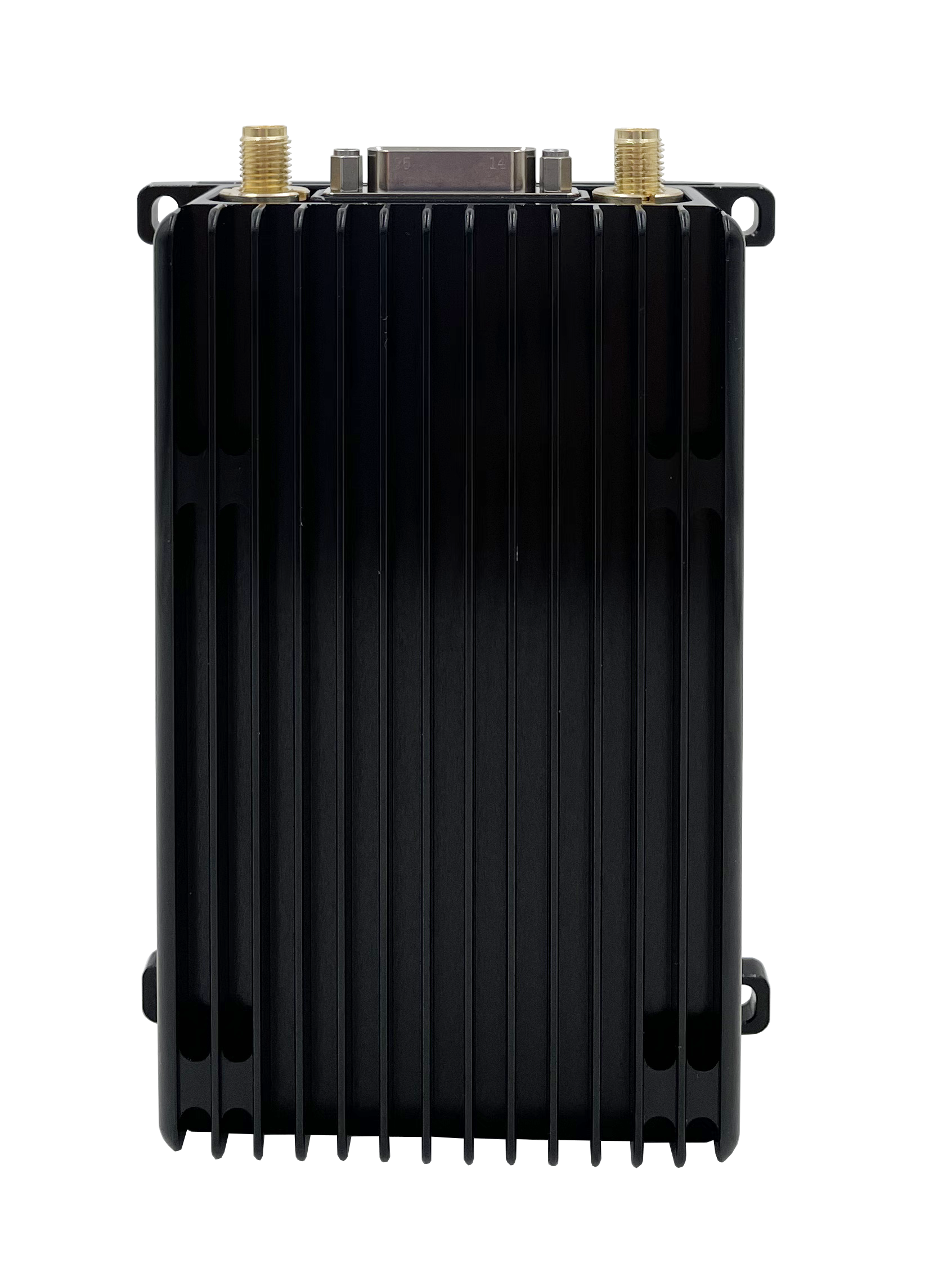

T3S3-8W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 1300~1500MHz，1MHz step adjustable；

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 8W：2x4W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 90+Mbps@20MHz

◆ Range 100+km（LOS）

◆ Interface 100M LANx2、RS232x3(or RS232x2+RS422x1)

◆ Satellite positioning GPS/BD * (* on-demand)

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 8~40W

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Battery charge 9~28V， Recommended 12V or 24V

◆ Dimensions 105x64x33mm(-1）/110x92x33mm(-2) /110x92x42mm (-3)

◆ Bare weight About 265g (-1)/about 350g (-2)/about 450g (-3)

Note For detailed parameters, please contact us to obtain the product specification manual
