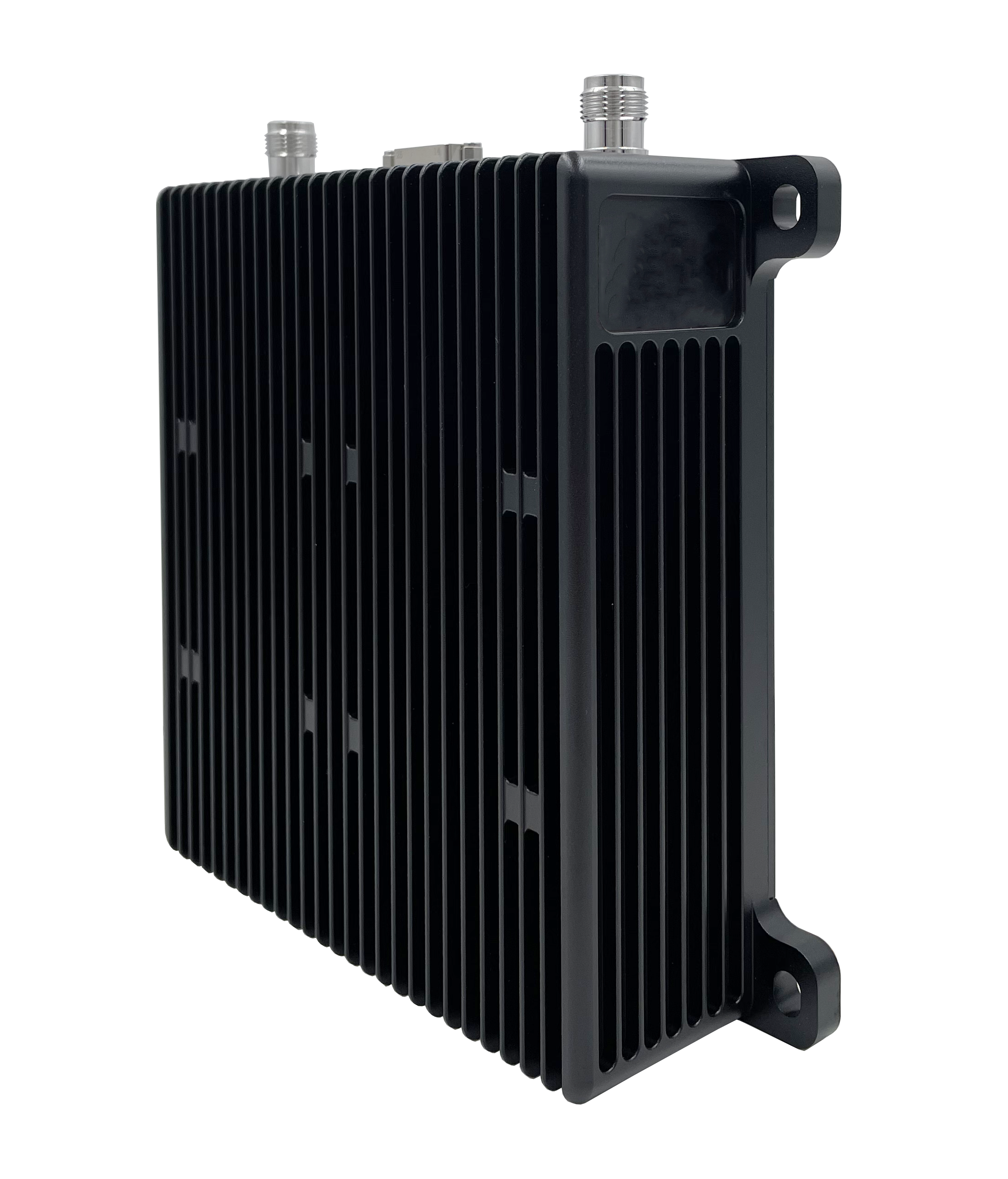

T3S3-10W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 1300~1530MHz/4200~4400MHz/4400~5000MHz

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 10W：2x5W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 220+Mbps@40MHz

◆ Range 150+km（LOS）

◆ Interface 100M LANx2、UARTx3（TTL、RS232、RS422、RS485 customizable）

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 15~60W

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Dimensions 140x130x44mm

◆ Bare weight about 860g

Note For detailed parameters, please contact us to obtain the product specification manual
