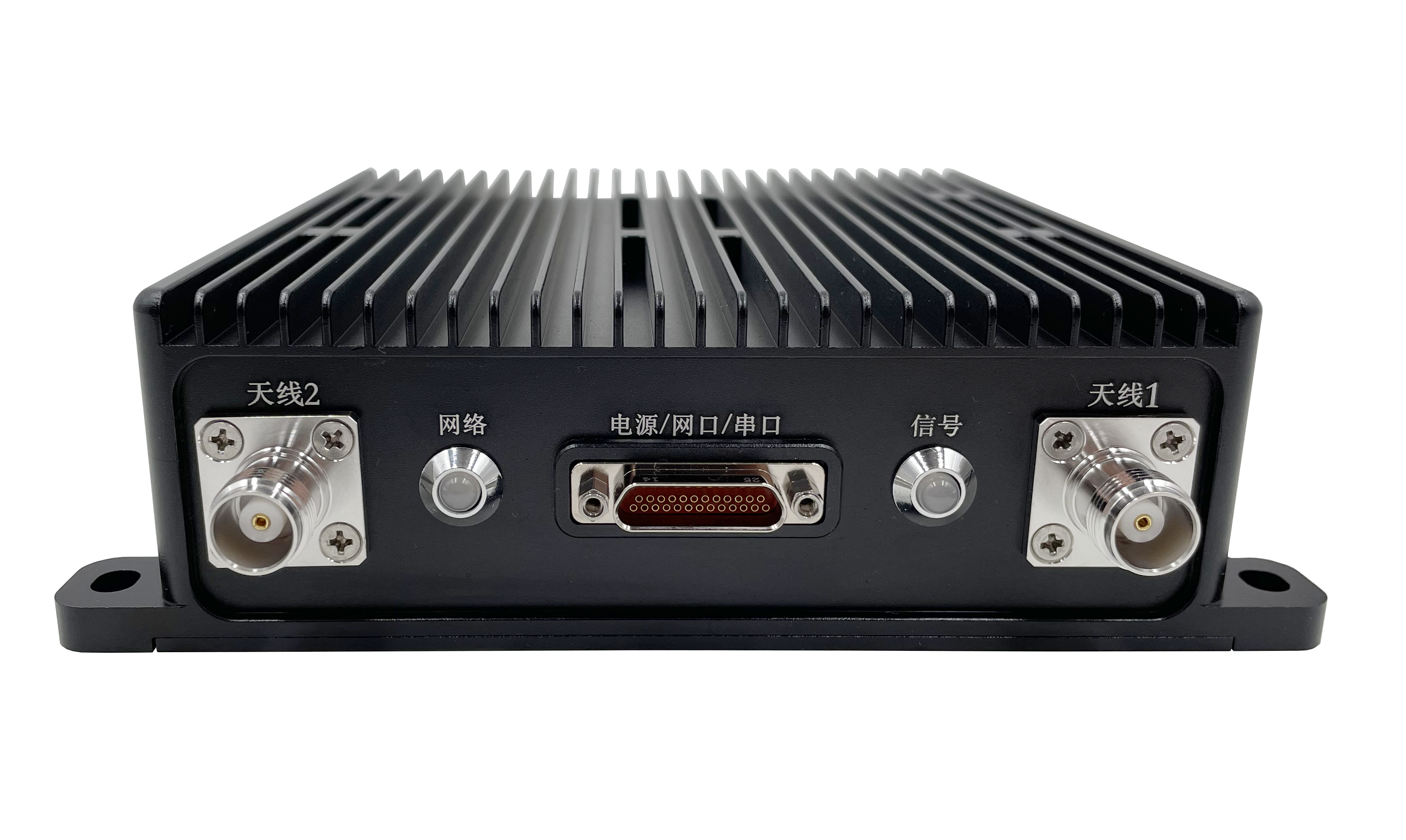

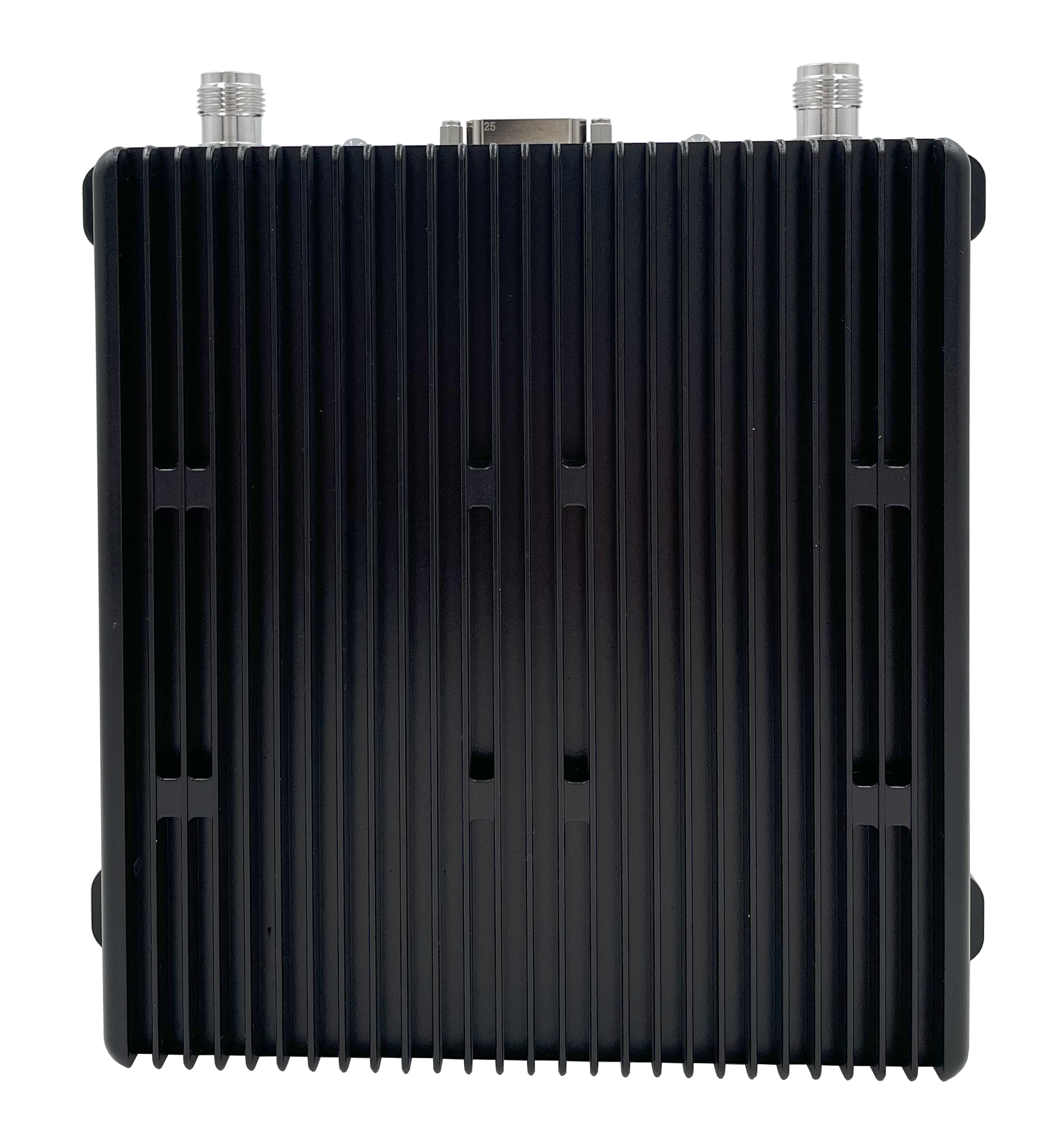

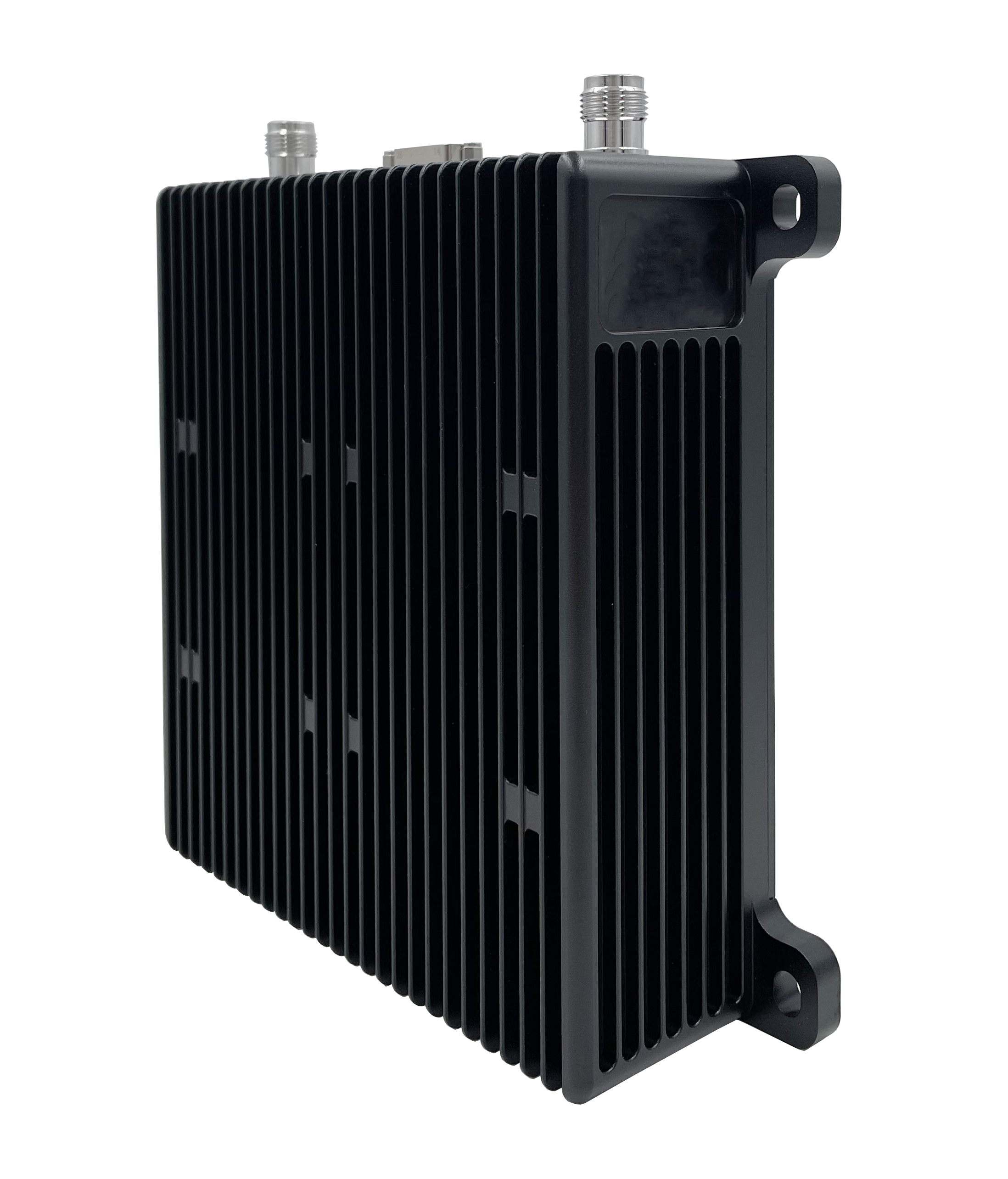

T3S3-20W

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

◆ Network scale Single frequency supports 64/128*/256* notes（*Optional）

◆ Frequency 560~680MHz/1300~1530MHz/4200~4400MHz/4400~5000MHz

◆ Anti-interference intelligent frequency selection*, broadband frequency hopping*（*Optional selection）

◆ Output power 20W：2x10W,1dBm step adjustable

◆ Bandwidth 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40*MHz（*Optional selection）

◆ Receive sensitivity -103dBm@5MHz

◆ Peak rate 220+Mbps@40MHz

◆ Range 200+km（LOS）

◆ Interface LANx2、UARTx3（TTL、RS232、RS422、RS485 customizable）

◆ Secure encryption DES/AES128/AES256

◆ Power consumption 15~80W (L-band)/15~120W (C-band)

◆ Latency about 7ms

◆ Working temperature -40~+65℃

◆ Battery charge DC30~48V (optional DC18~48V)

◆ Dimensions 140x130x44mm (L-band), 170x152x48mm (U/C-band)

◆ Bare weight About 860g (L-band), about 1300g (U/C band)

Note For detailed parameters, please contact us to obtain the product specification manual
